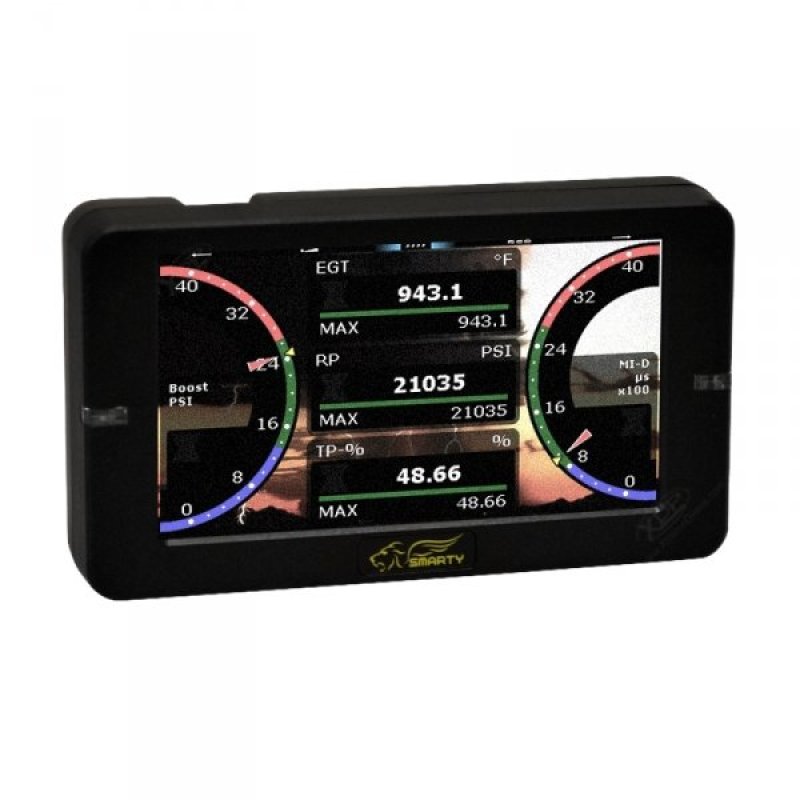

Smarty 98.5+ Dodge/Ram Cummins Touch Tuner

MADS Electronics Smarty Touch Tuner Programmer

Vehicle Application:

• 1998.5 - 2007 Dodge Ram Pickup Trucks Cummins 5.9 L
• 2007 - 2010 Dodge Ram Pickup Trucks Cummins 6.7 L
• 2011 - 2012 RAM Pickup Trucks Cummins 6.7 L
• 2013 - 2018 RAM Pickup Trucks Cummins 6.7 L (Requires Smarty ComMod Communication Module)

• NOTE: Cab and Chassis: 2007-2018 Cummins 6.7 Cab and Chassis with pickup type ECM
• The Smarty product we Sell only Works with DPF Installed and EGR Installed and all emissions in place. If you have deleted anything on your truck emissions - This Product will not work !

Smarty Pyrokit EGT Sensor Kit:

• The Smarty Thermocouple EGT ( Exhaust Gas Temperature ) Sensor Kit (S2GEGT) gives the Smarty Touch monitor the ability to read and display your exhaust gas temperatures. The Smarty EGT sensor (optional) reads accurately up to over 2200°F.

Smarty Communication Module:

• The Smarty Communication Module ( ComMod ) is an additional Bus Expansion port for the Smarty Touch. The Smarty Communication module (optional) tunes real time parameters. The Smarty Communication module is required to tune an ECM for CR 6.7L 2013-2018 trucks.

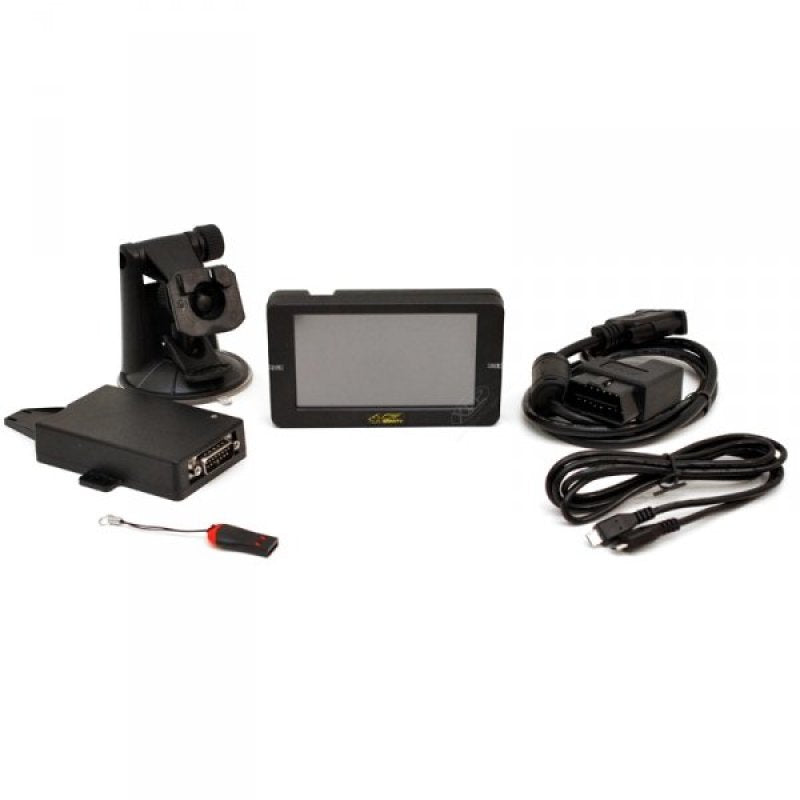

Smarty Touch features:

• Includes free suction cup mount to glass
• 4.3" Touch Display. Resolution 480 x 272 - 16.3 million colors.
• Two devices: Smarty Touch Display and Smarty Touch Controller each with its own CPU. The Display for the graphics & user interface and the controller for communicating with the ECM.
• Twin CPU design. The fastest Display & Tuner on earth!
• Fastest display start up in the industry. Just four seconds! Fastest PID refresh speed in the industry.
• Fastest ECM download in the industry, up to three times faster than the competition, a typical ECM update takes 1.5 to 6 minutes, depending on the model year.
• Small micro USB cable connecting the display and the controller for easy installation.
• MicroSD card for simple and fast updates (included).
• Fully Internet updateable. Updates are always FREE!
• MicroSD card can store multiple UDC custom tunes.
• Works with any MicroSD FAT file system formatted card.

• EGT sensor (optional). Reads accurately up to over 2200°F.
• Communication module (optional). Tunes real time parameters and unlocks the MY 2013+ ECMs.
• UDC Pro RT software (optional). Customizing tune software with real time parameters. (Requires Communication module for real time parameters programming). Please visit the Smarty Manufacturer site at MadsElectronics.com for more information.

• Four dashboards, each configurable with five different gauge layouts.
• Freely configurable gauge(s) range.
• Two alarms (high and a low range) can be configured for each PID.
• Audible and/or visible alarms can be configured.
• Configured ranges are also displayed through colored bars in all digital gauges.
• Configurable PID refresh speed.
• Each gauge stores/updates and displays the max reached PID value continuously. Recorded max values can be reset at any time.
• Customizable display background.
• Adjustable sound feedback for alarms.
• Supports over 300 SAE and Proprietary PID's. For a detailed list of the supported PID's (depending on MY), please visit Smarty Manufacturer website at: https://www.madselectronics.com/SmartyTouchPIDS.html

• CaTCHER software inside with ten power levels. Selectable performance parameters for fine tuning.
• Works with Smarty UDC and UDC Pro RT (Firmware 1.1.2 or recent is required) custom tuning software (for CR 5.9L and for 6.7L trucks).
• Can store multiple UDC and UDC Pro RT custom softwares on MicroSD card with dongle purchases. The only limit is the storage space on the MicroSD card (for CR 5.9L trucks and 6.7L trucks).
• ABS tire height updates in just seconds.
• Cold weather 3 Cylinder High Idle enabled for 1998.5 - 2002 VP 5.9L trucks.
• Not traceable in the stock setting. Smarty Touch leaves no footprint in all 5.9L trucks.
• Manual High Idle is enabled in all softwares for CR 5.9L trucks (excluded MY 2003).
• Reads Diagnostic Trouble Codes in plain text.
• Clears DTC's.
• Reliable, it works off your OEM hardware.
• Programmable Speed Limiter from 25 to 250 mph.
• Power Level Switch with 5 selectable levels.
• Power on Demand "PoD" for CR 5.9L and 2007 - 2009 6.7L trucks.
• Real time tuning parameters, while engine is running, for CR 6.7L 2010+ trucks (Requires Communication module).
• Works on all Dodge Cummins Ram Pickup's from 1998.5 to 2018. Communication module required to tune an ECM for CR 6.7L 2013+ trucks.
