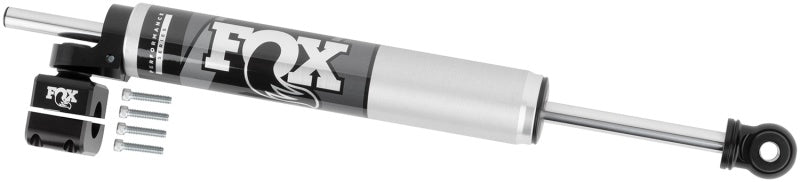

2017–2023 Ford F-250 / F-350 Super Duty 4WD Fox 2.0 Performance Series Steering Stabilizer TS

Upgrade your steering control and overall driving stability with the Fox 2.0 Performance Series Steering Stabilizer TS. Unlike conventional stabilizers that create uneven pressure and unwanted steering feedback, this advanced design eliminates the push or pull typically felt through the wheel. Traditional stabilizers build internal pressure as the shaft moves in one direction, often requiring dual opposing units to counteract that force. The FOX Through Shaft (TS) architecture solves this issue by allowing fluid to move evenly throughout the entire stroke, eliminating displacement and delivering neutral, consistent damping in both directions. The result is improved steering precision, reduced feedback from rough terrain, and better overall control—without the need for additional hardware. Built from FOX’s proven ATS technology, this stabilizer offers a simple bolt-on upgrade with application-specific mounting and compatibility for both factory and heavy-duty tie rods.

Key Features

• Through Shaft (TS) design eliminates fluid displacement for true neutral steering control
• 8.1” travel provides consistent damping across full steering range
• 2.0” impact-extruded and CNC-machined 6061-T6 aluminum body resists rust and corrosion
• Clear anodized body finish for long-term durability
• Black anodized, CNC-machined 6061-T6 billet aluminum components
• 5/8” hard chrome-plated, heat-treated alloy steel shaft for strength and longevity
• Race-developed high-flow piston design for improved damping response
• Application-specific valving to maximize steering performance
• Redundant sealing system with main seal, wiper seal, and scraper seal for extended service life

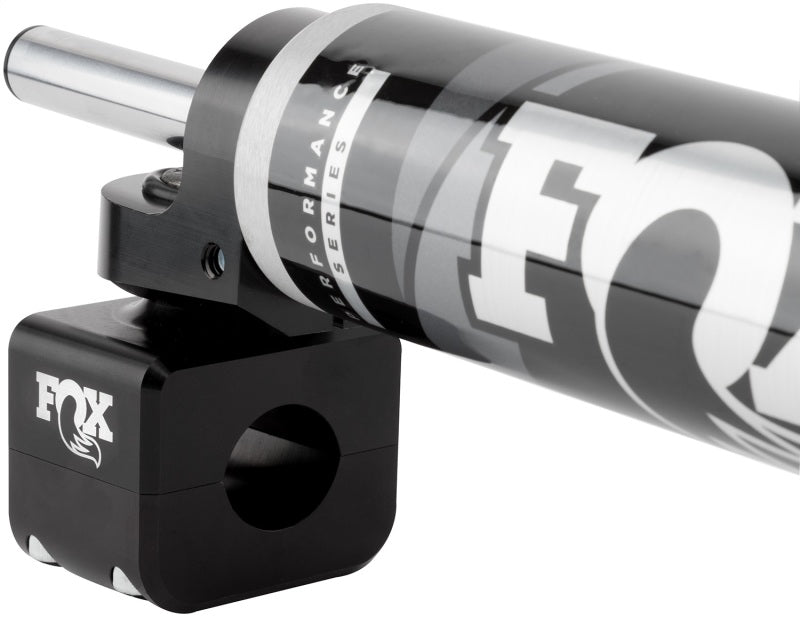

• Tie rod clamp top mount with eyelet lower mount for secure installation
• Includes application-specific mounting hardware
• Available for stock and heavy-duty aftermarket tie rods

Performance Benefits

The Fox 2.0 Steering Stabilizer TS is designed to improve steering feel and eliminate unwanted feedback commonly experienced in lifted or heavy-duty trucks. It provides:

• Reduced bump steer and steering wheel kickback
• More consistent steering feel in both directions
• Improved stability at highway speeds
• Better control over rough terrain and uneven surfaces
• Enhanced driver confidence when towing or hauling

Construction & Materials

• Body: 2.0” impact-extruded 6061-T6 aluminum
• Finish: Clear anodized for corrosion resistance
• Components: CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8” hard chrome-plated heat-treated alloy steel
• Piston: High-flow, race-developed design
• Sealing: Multi-stage system including main seal, wiper, and scraper

Installation

• Install Time: Approximately 1–2 hours
• Difficulty: Easy to moderate
• Installation Type: Direct bolt-on
• Hardware: Includes application-specific mounting hardware

Note: Requires drop bracket for vehicles with over 1.5” of lift

Fitment

• 2017–2023 Ford F-250 Super Duty (4WD)
• 2017–2023 Ford F-350 Super Duty (4WD)
  • Fits all trim levels including XL, XLT, Lariat, King Ranch, Platinum, and Limited

Why Choose Fox Steering Stabilizers?

Fox brings race-proven technology into a daily-driven package. The Through Shaft design used in this stabilizer eliminates the drawbacks of traditional steering stabilizers, delivering consistent damping, improved control, and a more predictable driving experience—all in a single, easy-to-install unit.
