2011-2016 Ford Super Duty F-250 / 350 Ladder / Traction Bars (with top U bolt plate)
2011-2016 Ford Super Duty F-250 / 350 Ladder / Traction Bars (with top U bolt plate)
Adjustable Traction Bar Kit
If your Ford Super Duty has a lift kit, your U bolts may have been flipped to a top U bolt plate design. In this case, we will send an axle clamp bracket to wrap around the axle for the rear traction bar mount. Most of these trucks have a 10.5" Sterling rear axle with a fill plug on the back diff cover. If you do not have a fill plug, verify your axle tube diameter—it may be the larger Dana 80 rear end with a 4" tube instead of the 10.5 Sterling 3.5" axle tube diameter. We offer mounts for both axles; please contact us if you have the larger axle, or we will send the standard 3.5" axle clamp.
(Some models may require removal or trimming of the skid plate on the side of the fuel tank for clearance.)
Why Choose Apoc Adjustable Traction Bars?
Apoc's adjustable tubular traction bars are a bolt-on kit designed to enhance the look of your Ford Super Duty pickup while providing essential rear suspension support. Today's powerful trucks can experience wheel hop and leaf spring damage, whether stock or lifted. A quality set of traction bars helps stabilize your suspension and minimize axle wrap.
If your truck has lift blocks, traction bars will increase rear suspension stability. Our simple bolt-on kit clamps around the rear axle housing and bolts to the frame. Drilling is required for the frame mount unless welded. Our design includes an adjustable end for easier installation, allowing for future lift modifications without additional drilling or purchasing a longer traction bar.
Key Features:
✔ 82" Traction Bars – Provides maximum stability and strength.
✔ Axle Clamps Replaced with U-Bolt Plates – Prevents axle twisting.
✔ Bolt-On Installation – No complex modifications required.
✔ Adjustable Design – Easily adapts to future lift modifications.
✔ Heavy-Duty Construction – Built to withstand extreme conditions.
Parts Included:
✅ 2 Frame Mounts
✅ 2 U-Bolt Mounts
✅ 2 Traction Bars
✅ Install Hardware
Installation Details:
⏱ Install Time: 2.5 Hours
🛠 Tools Required: Basic Hand Tools, Drill & Drill Bits
📜 Includes Install Instructions
Upgrade your Ford Super Duty today with Apoc's Adjustable Traction Bar Kit and experience enhanced stability, performance, and durability on any terrain!
Order Now & Strengthen Your Suspension!
Built Right. Backed Right.
Our crew’s on call Monday–Friday, 9–5 EST. Hit us up at 865-983-5004 — real support, done right.
Product specifications
On some models, you may need to trim or remove the skid plate near the fuel tank to ensure proper clearance. Please check your vehicle before installation.
Yes – Fits Nearly All Lift Heights
PTMEG Polyurethane 91 Durometer
Adjustable from shortest length up to +2.5"
Powder Coated Satin Black (Bare Metal available if selected)
Value
Built to Control Torque
Apoc Industries ladder bars deliver relentless traction and control, locking down your rear suspension under hard launches, towing, or off-road abuse. Precision-welded, made in the USA, and ready to dominate whatever you throw at them

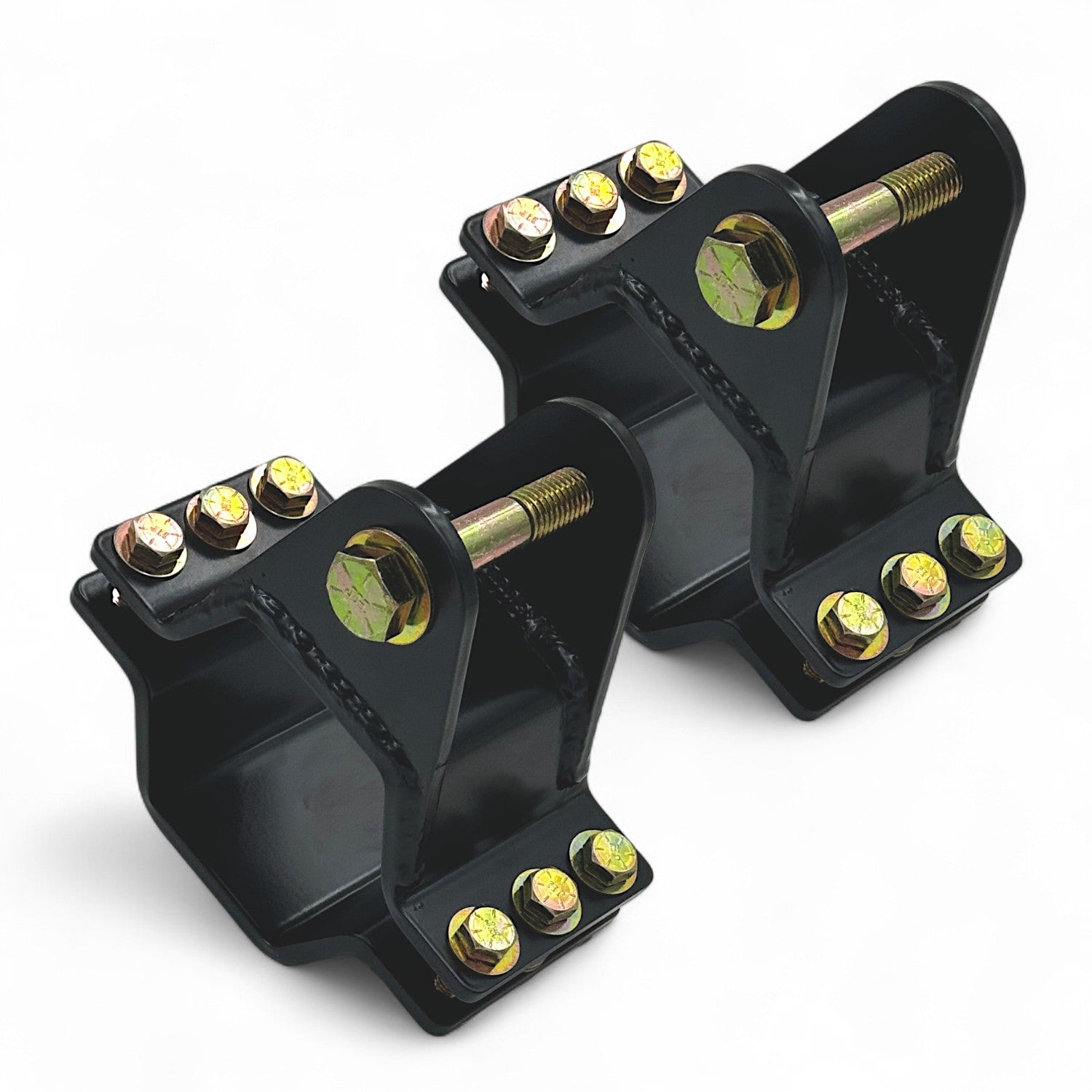

Clamp-On Strength. Weld-Free Simplicity.
Apoc Axle Clamp Mounts are a heavy-duty, weld-free solution for installing ladder bars on your rear axle. Built from thick-gauge steel and precision-formed for a secure fit, these clamps bolt directly around the axle tube, eliminating the need for welding or custom fabrication. Designed to handle serious torque and axle wrap, they offer a clean, adjustable mount point that pairs perfectly with Apoc ladder bar kits.
Frame-Mounted. Torque-Tested.
The Apoc Bolt-On Frame Mount is built for serious strength and easy installation. Designed to work with our traction bar kits, it bolts directly to the truck’s frame—no welding required. Precision-cut from thick-gauge steel and powder-coated for durability, this mount provides a rock-solid connection point that holds up under heavy torque, towing, and hard launches.
Lifetime Warranty Polyurethane Bushings
Built to Last, Easy to Rebuild
Apoc Industries' high-performance polyurethane bushings are backed by a lifetime warranty and engineered for durability you can count on. Easily rebuildable with basic tools, they deliver a firm, responsive ride without the hassle—made for daily drivers and built for the long haul.
Before
After
Ladder Bar Kits
Built to Control Torque. Eliminate Wheel Hop.
Complete Kit – Ready to Install:
The Apoc Traction Bar Kit for Ram trucks includes everything you need for a complete install: two heavy-duty traction bars, frame-side brackets, axle-side brackets, and all required grade 8 hardware. Designed to control axle wrap and improve traction under load, this kit is built to handle serious torque while keeping your suspension tight and your rear end planted.
Preload It. Fine-Tune It.
The traction bars are fully adjustable, allowing you to fine-tune the setup without relocating the frame mounts when changing lift heights. You can also preload the bars to tighten up suspension response and reduce unwanted movement under load—giving you more control, less wheel hop, and a smoother, more planted ride.
Premium Bushings – Built for Life:
Apoc Industries backs our bushings with a Lifetime Warranty for lasting confidence. We use only the highest quality polyurethane (PTMEG-based) in all Apoc products.
PTMEG polyurethane offers superior articulation and a firmer, more responsive feel — without the harshness commonly found in solid joints like heims or flex joints.
These bushings are ideal for daily driving while providing excellent durability and performance for moderate off-road use.
100%
Red, White & Built Right
FAQ'S
Traction Bars
Our customer support is available Monday to Friday: 9am-5pm EST. 865-983-5004
A: Traction bars prevent axle wrap—when your rear axle twists under load—which can cause wheel hop, vibration, and premature wear on driveline components. Apoc traction bars keep the rear end planted under hard acceleration, towing, or off-road use.
A: If your Ram is lifted or sees heavy towing, yes. Even on daily drivers, traction bars help reduce rear-end movement, improve driveline alignment, and extend the life of suspension and axle components. If you're running taller-than-stock lift blocks, traction bars are strongly recommended to prevent axle wrap and maintain stability under load or acceleration.
A: Yes. The kit is designed for a straightforward, bolt-on install using basic hand tools. The frame-side brackets do require drilling, but no welding is needed. If you’re mechanically inclined, you can knock it out in a few hours at home. Prefer a shop? No problem—it’s installer-friendly either way.
For PTMEG (polytetramethylene ether glycol) polyurethane bushings, the best grease is a silicone-based lubricant with PTFE (polytetrafluoroethylene) additives. Here’s why and what to consider:
Why Silicone-Based with PTFE?
: PTMEG polyurethane is resistant to petroleum-based products, but silicone-based grease is preferred as it won’t degrade the material and is explicitly recommended for polyurethane bushings.Tackiness
: PTFE additives lower the coefficient of friction and are waterproof, ensuring long-lasting lubrication and quiet operation.
: Silicone-based grease repels water, protecting bushings from corrosion and maintaining performance in wet conditions.
