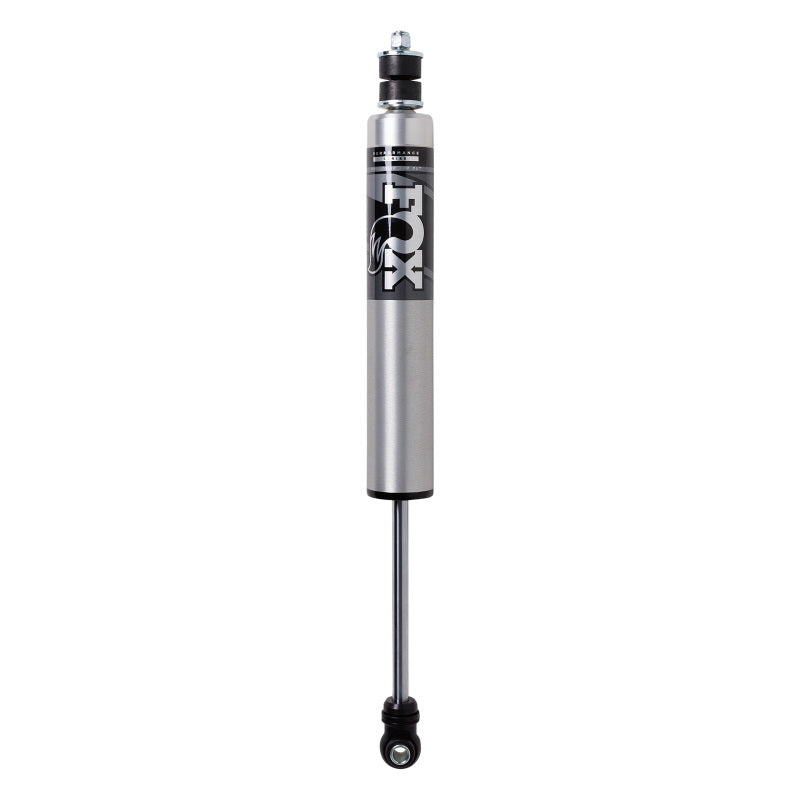

Fox 14+ Ram 2500 / 13+ Ram 3500 4-6in Lift Front 2.5 Perf. Series IFP HTO Shock

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

• Key Features

  • 2.5” Impact-Extruded 6061-T6 Aluminum Shock Body

  • Type II Clear-Anodized Body Plating for corrosion resistance

  • High-Flow Velocity-Sensitive Damping

  • 5/8” Hard Chrome Shaft for strength and smooth operation

  • Internal Floating Piston (IFP) to prevent oil aeration

  • Hydraulic Top Out (HTO) Piston for controlled rebound top-out

  • Fully serviceable and re-tunable design

  ---

  Technical Specifications

  • Series: Performance

  • Travel: 9.69"

  • Extended Length: 27.97"

  • Compressed Length: 18.28"

  • Top Mount: Stem

  • Bottom Mount: Eyelet

  ---

  •

  ---

  Benefits

  • Enhanced stability and control with lift kits and larger tires

  • Smooth, predictable damping across varied terrain

  • Reduced fade during extended off-road use

  • Direct bolt-on installation

  ---
