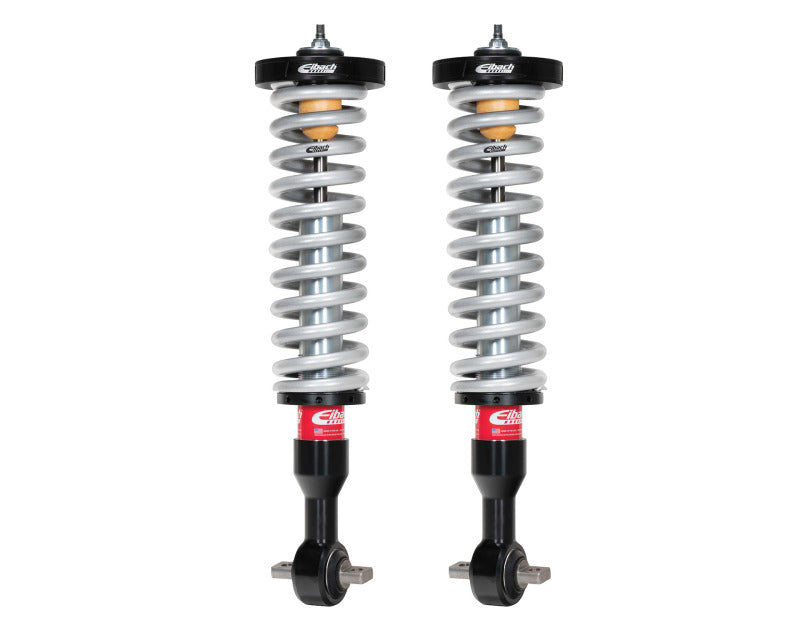

Eibach PRO-TRUCK 2.0 Front Coilover Kit for 2015–2026 Ford F-150 SuperCrew 4WD (3.5L & 2.7L EcoBoost) Featuring Threaded Bodies for Ride Height Adjustment and Improved Damping Performance (+0.5–2.3" Lift)

Upgrade the front suspension of your Ford F-150 with the Eibach PRO-TRUCK 2.0 Front Coilover Kit. Designed for improved ride quality, handling, and off-road capability, this system replaces the factory front coilover assemblies with a high-performance monotube design featuring adjustable ride height.

Eibach's PRO-TRUCK COILOVER 2.0 features threaded bodies for fine-tuning ride height and improved damping performance delivering maximum off-road capability.

The PRO-TRUCK 2.0 coilovers provide increased front lift and improved suspension control, making them ideal for leveling the truck, fitting larger tires, and enhancing both on-road comfort and off-road performance. Each coilover is fully assembled and engineered specifically for the F-150 platform to deliver consistent performance and durability.

Key Features

• Pre-assembled factory direct replacement front coilovers with no additional parts required
• Sold in pairs
• Adjustable threaded spring perch to accommodate increased loads and provide maximum clearance
• ERO off-road race springs equipped and compatible
• Anodized 6061-T6 billet aluminum mounts

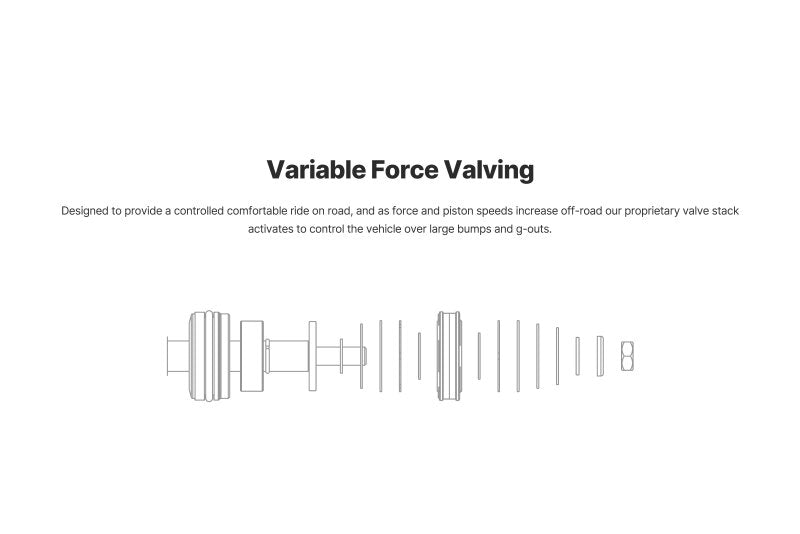

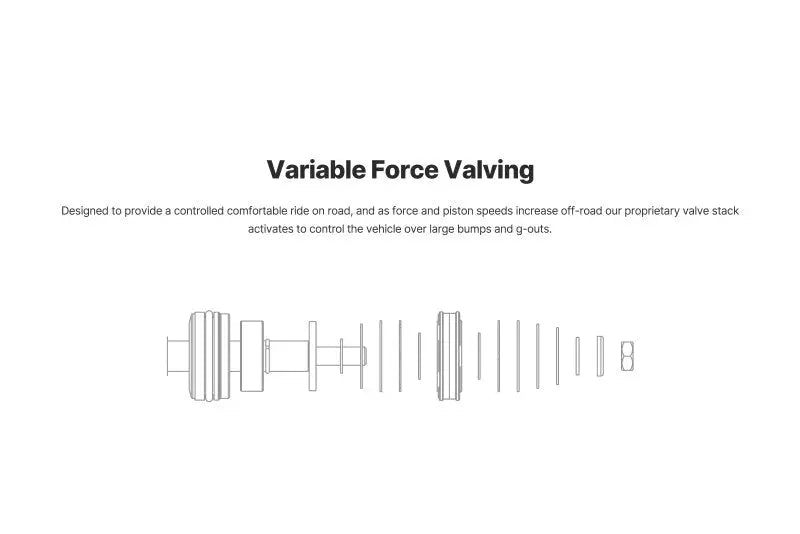

• 46mm piston monotube design with nitrogen-filled variable force valving
• Individually dyno tested for matched performance and reliability
• Heavy-duty bushing system that has been cycle tested
• Engineered, tested, and manufactured by Eibach in the U.S.A.
• Two-year manufacturer warranty

Specifications

• Product Line: PRO-TRUCK 2.0
• Position: Front
• Lift Range: +0.5" – 2.3" front lift
• Shock Type: Gas-charged monotube
• Piston Size: 46mm
• Mount Material: 6061-T6 billet aluminum
• Sold As: Pair (2 front coilovers)

Fitment

2015–2020 Ford F-150 SuperCrew 4WD
3.5L V6 EcoBoost
Lift Range: +0.5" – 2.3"

2015–2020 Ford F-150 SuperCrew 4WD
2.7L V6 EcoBoost
Lift Range: +0.5" – 2.3"

2021–2026 Ford F-150 SuperCrew 4WD
3.5L V6 EcoBoost
Lift Range: +0.5" – 2.3"
Excludes vehicles equipped with CCD Electronic Suspension

Installation

Estimated Install Time: 2–3 hours
Difficulty Level: Moderate

Direct bolt-on replacement for factory front coilover assemblies. Professional installation recommended.

Notes

Preload is set to the recommended ride height. Increasing ride height beyond this setting may result in reduced droop travel and a firmer ride.

Fitment, height, and warranty coverage are not guaranteed for applications not listed by the manufacturer.
