2017–2022 Ford F-250/F-350 SRW 4WD Air Lift LoadLifter 5000 Air Spring Kit for Lifted Trucks
2017–2022 Ford F-250/F-350 SRW 4WD Air Lift LoadLifter 5000 Air Spring Kit for Lifted Trucks
The Air Lift LoadLifter 5000 air spring kit is a premium load-support system designed specifically for lifted Ford Super Duty trucks. It provides up to 5,000 lbs of leveling capacity, adjustable air pressure, and a simple bolt-on installation. This setup helps restore proper ride height, reduce sag, and improve stability while towing or hauling — all without sacrificing ride comfort when unloaded.
Key Features
-
Provides up to 5,000 lbs of load-leveling capacity for towing and hauling.
-
Adjustable air pressure from 5–100 psi for precise ride height and control.
-
Designed for trucks equipped with rear leaf-spring block spacer lifts.
-
Retains factory springs, U-bolts, and frame-to-leaf spring geometry.
-
Compatible with most 5th-wheel and gooseneck hitches.
-

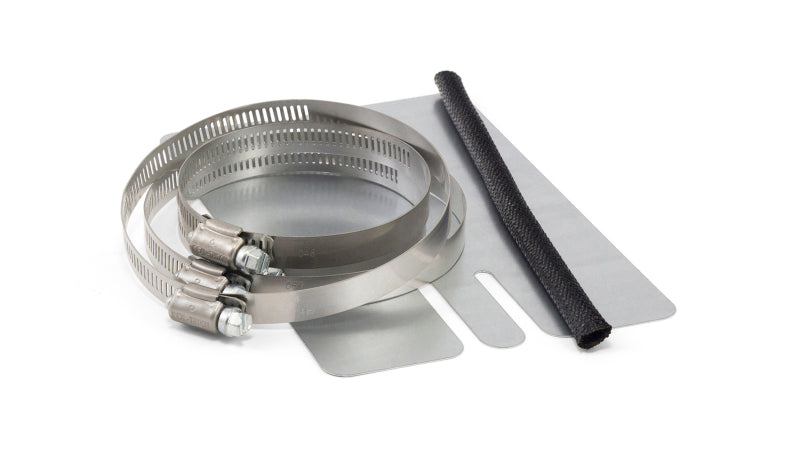

Includes roll plates to protect the air springs and improve durability.
-
Bolt-on installation with no frame drilling required.
-
Backed by Air Lift’s limited lifetime warranty and 60-day ride satisfaction guarantee.
Application / Fitment
-
Fits 2017–2022 Ford F-250 and F-350 Super Duty (single rear wheel, 4WD) models equipped with a block spacer-style rear lift.
-
Not for use on dual rear wheel (DRW) trucks or vehicles using replacement rear leaf springs that alter factory geometry.

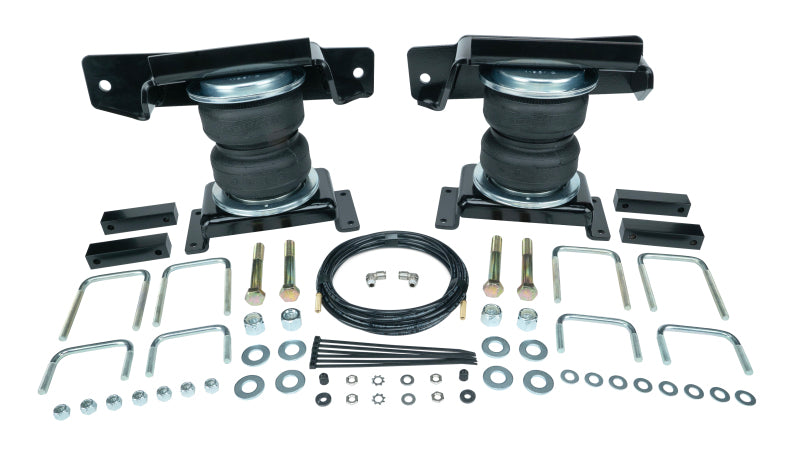

What’s Included
-

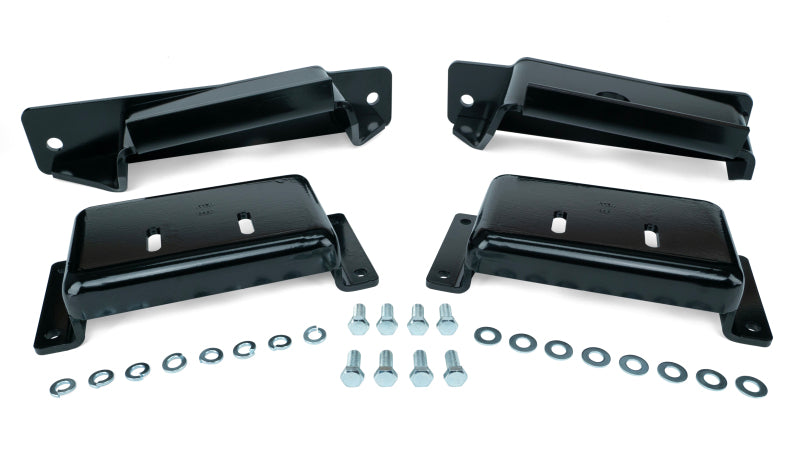

All necessary mounting brackets
-
All of the hardware needed for installation
-

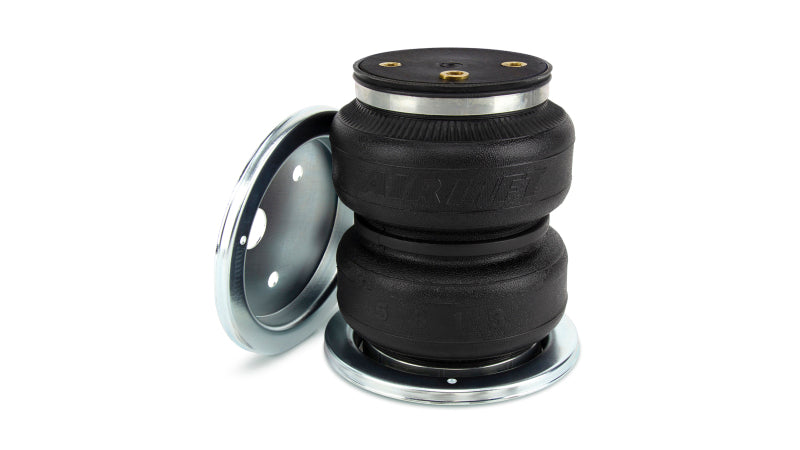

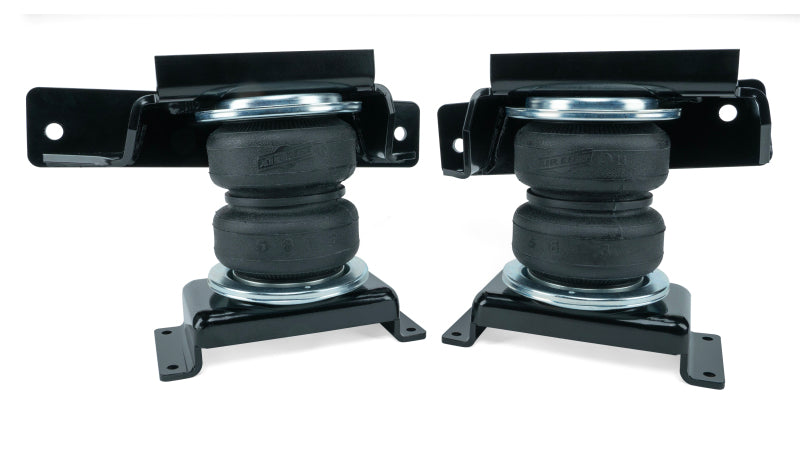

(2) Air springs
-
Internal jounce bumper
-
Fully illustrated installation guide
Benefits
-
Levels the truck under load and reduces rear sag.
-
Improves towing stability and reduces bottoming out.
-
Helps maintain proper headlight aim and safe braking.
-
Preserves ride comfort when unloaded by allowing low-pressure operation.
-
Fine-tune ride height or spring rate as needed through adjustable air pressure.
Installation Notes
-
Designed for use with block spacer-style lifts retaining the factory leaf springs and frame spacing.
-
Not compatible with systems that replace the factory leaf springs.
-
Set to 5 psi minimum when unloaded; adjust pressure to level the truck under load.
-
Do not exceed the vehicle’s Gross Vehicle Weight Rating (GVWR).
Fitment Warnings
-
Not for dual rear wheel models.
-
Not compatible with replacement leaf spring lifts.
-
Vehicle GVWR limits must always be followed.
