2017-2023 Ford Super Duty F-250 / 350 4WD REAR FOX 2.0 Performance

The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the most challenging conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race-developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predictable ride quality capable of handling the roughest road conditions.

Part Number Options	Lift/Lowered	Position	Item	Quantity	Extended Length	Compressed Length	Travel	Top Mount	Bottom Mount	Reservoir	Color
985-24-151	0-1" Lift	Rear	Shock Absorber	2	30.05"	18.45"	11.6"	EYELET	EYELET/SLEEVE	Internal Floating Piston (IFP)	Aluminum
985-24-152	1.5-3.5" Lift	Rear	Shock Absorber	2	32.75"	20.15"	12.6"
985-24-153	4-6" Lift	Rear	Shock Absorber	2	34.95"	21.35"	13.6"

Body	2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating	Clear-anodized for a durable finish
Reservoir	Internal IFP mono-tube reservoir design
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft	5/8" hard chrome plated heat-treated alloy steel
Piston	Race-developed high-flow piston design
Valving	Application-specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
Bushings	Quiet nitrile rubber allows for increased suspension articulation

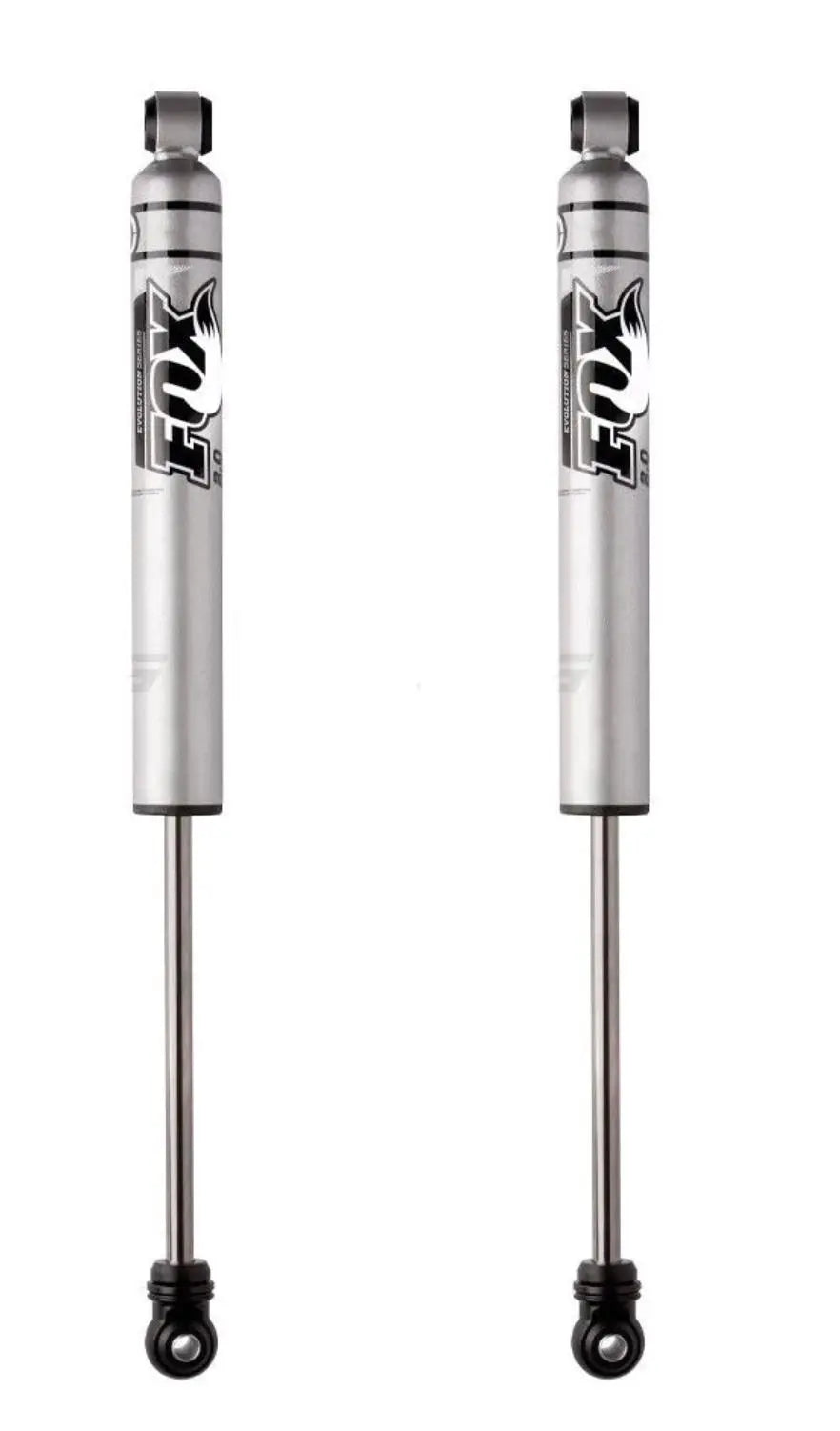

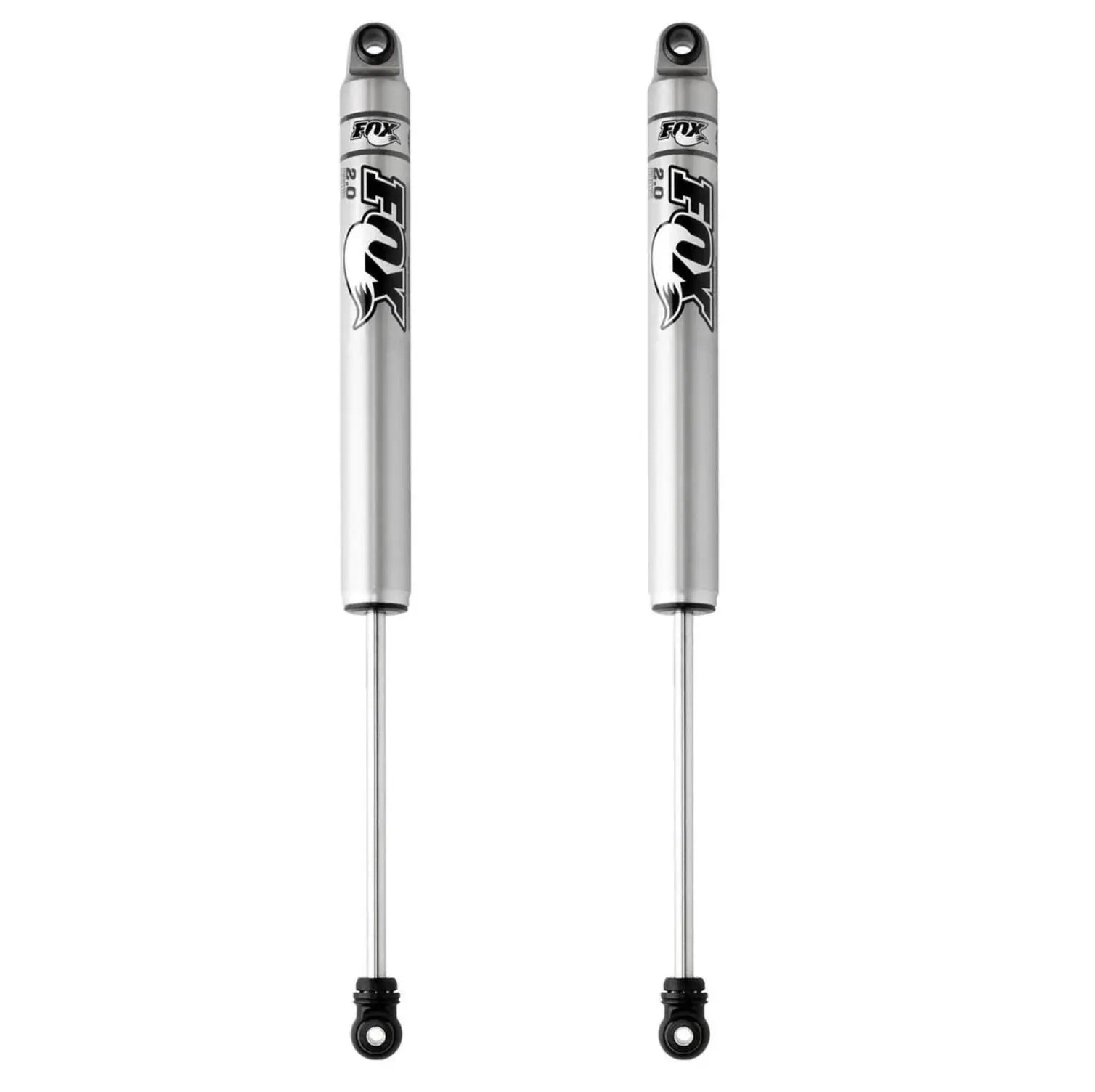

2017-2023 Ford Super Duty F-250 / 350 4WD REAR FOX 2.0 Performance Series Shocks Pair
